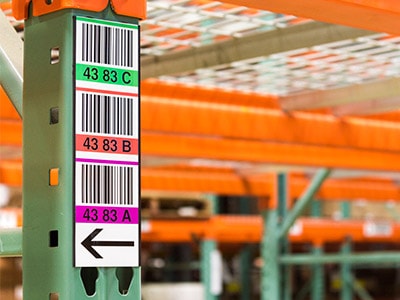

Vertical multi-level strips
Stack the location identifiers on one upright-mounted strip.
- Number of rack levels
- Top-to-bottom location order
- Available upright width
Identification & Graphics
Totem Labels
High-visibility multi-level identification for rack ends and aisle intersections.
Discuss this scope
Totem Labels
Bring upper-level locations to scanning height.
A totem is a location map for one rack position. Its row order and visual cues must correspond to the physical levels above it.
Color-banded level layouts
Separate the rows using a consistent level-color system.
- Color assigned to each level
- Human-readable location text
- Arrow direction and scan spacing
Split and horizontal layouts
Rearrange the same location set where a single vertical strip does not fit.
- Mounting-face dimensions
- Left/right position logic
- Consistent association with the rack bay
Your next step
Put the scope together.
Choose a format above, or send your plans and photographs so we can discuss the complete scope.
